Super Plus Semi-Automatic Pallet Wrapper - Not Including Forklift System
Contact us for our best price 01639 890609

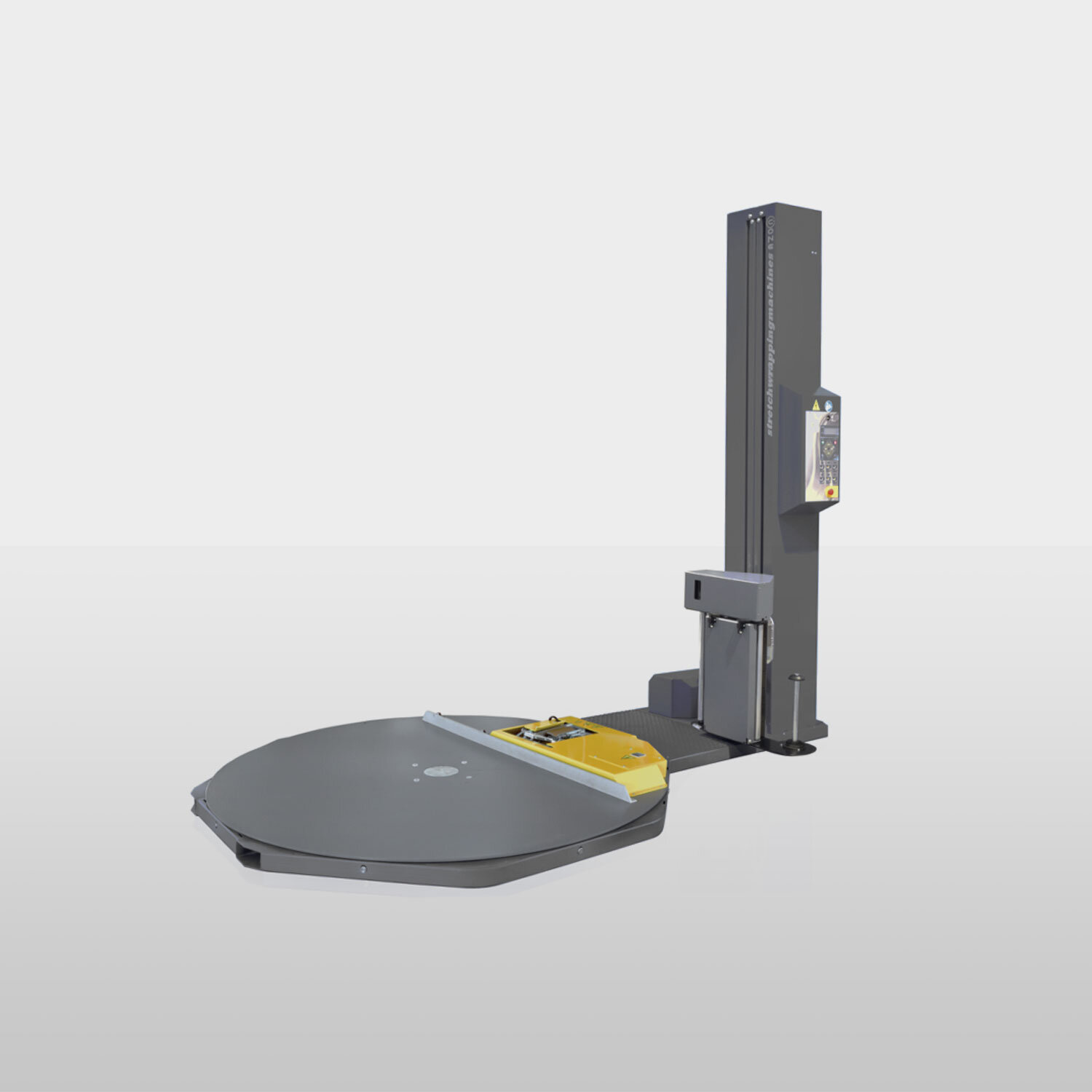

Place a pallet on the turn table of this low profile turntable pallet wrapper and the Super Plus pallet wrapper will automatically attach the film, wrap, cut and heat seal the film. .
Along with an infrared/radio remote control, these four systems allow the operator to be free from all manual work, and the fork lift driver to not need to get off the fork lift increasing safety and saving time and increasing efficiency.
Technical Details
Height: 2473 mm
Width: 1650 mm
Length: 2804 mm
Turntable height: 80 mm
Weight: 600 Kg
Power supply: 230 VAC VAC 3PH+N
Power absorption: 2 kW
Specifications
Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing
Air device to blow up the film tail
Power pre-stretch carriage
Electronic printed circuit board for the management of the cycle
Frequency controller for carriage speed adjustment
Frequency controller for turntable speed adjustement
Loading plate ø 1800 mm
Maximum height of pallet: 2300 mm
Maximum size of the pallet: 800x1200 mm
Maximum loading weight: 2000 kg
Photocell for pallet height detection
Safety stop at the base of the carriage
Stop at 0 position
Power board IP54
3 password levels (including lock password)
Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height
3 working cycles: ascent/descent; topsheet; layers
Storage of 32 end user programs
3 working ways: semimanual, semiautomatic, fixed height
Strenghtening operation
Acoustic warning at the cycle beginning and stop
Autodiagnostic
Wrapped pallet counter
Receiver for infrared/radio remote control
Powder coating
Braked turntable at the end of the cycle
Product Options (Available on request)
Top-press
Adjustable power pre-stretch
3000 mm max wrapping height
1800 mm turntable
2000 kg max pallet weight
Remote control
Ramp
Pit frame
Photocell for dark loads
Weighing system
Mechanical system to brake roll containers
Feet under the machine
Safety fences
