IBIS Premium Semi-Automatic Pallet Wrapper

Unbeatable quality and unbeatable price on 01639 890609

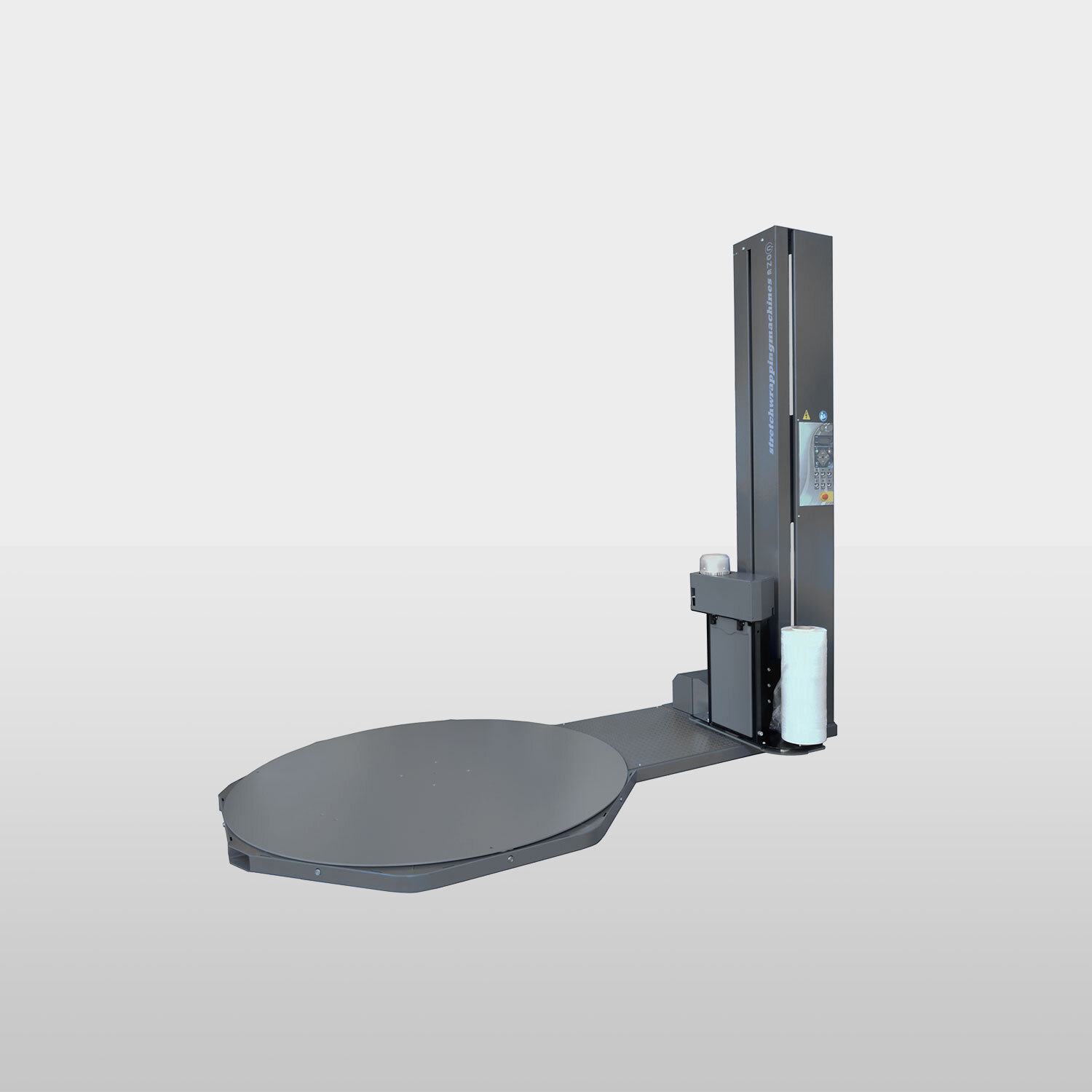

The C-one IBIS Premium Pallet Wrapper is a heavy duty turn table pallet wrapper built in Europe using quality motors and components and designed to work 24 hours. The C-one Premium pallet Wrapper has a 2 ton capacity strong hexagonal turn plate and 32 programmable wrapping cycles. The carriage can be supplied with either an electronic break or power stretch carriage. All motors and Components are controlled by inverters so all parameters can be changed for the perfect wrap. Uniquely even the amount of power stretching can be altered 4 times during a wrapping cycle. This reduces film consumption especially when wrapping sharp edged loads.

Options include: auto cut off of film at end of cycle, automatic banding, non touch start of cycle, double carriage motors for continuous stretching up to 400%

The Premium pallet wrapper has a 3 year warranty and is fully backed up with IBIS fully trained engineering team

Technical Details

• Height: 2466 mm

• Width: 1500 mm

• Length: 2660 mm

• Turntable height: 75 mm

• Weight: 400 Kg

• Power supply: 230 VAC VAC 3PH+N

• Power absorption: 1 kW

Specifications

• Electronic printed circuit board for the management of the cycle

• Frequency controller for carriage speed adjustment

• Frequency controller for turntable speed adjustement

• Loading plate ø 1650 mm

• Maximum height of pallet: 2400 mm

• Maximum size of the pallet: 1000x1200 mm

• Maximum loading weight: 2,000 kg

• Electromagnetic brake or power stretch carriage

• Photocell for pallet height detection

• Safety stop at the base of the carriage

• Stop at 0 position

• Power board IP54

• 3 password levels (including lock password)

• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle

• Parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height

• 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack

• Storage of 32 end user programs

• 3 working ways: semimanual, semiautomatic, fixed height

• Strenghtening operation

• Acoustic warning at the cycle start and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked turntable at the end of the cycle

• 3years warranty

Product Options (Available on request)

• Top-press

• Power pre-stretch

• Adjustable power pre-stretch

• Power pre-stretch with auto cut-off system

• Roping system

• 3000 mm max wrapping height

• 1800 mm - 2800 turn tables

• 2000 kg max pallet weight

• Remote control to start wrapping cycle

• Ramp

• Pit frame

• Photocell for dark loads

• Clip to tie the film to the turntable

• Weighing system

• Mechanical system to brake roll containers

• Feet under the machine

• Safety fences
