Cingo Mobile Pallet Wrapper

Minimum working space and outstanding performance

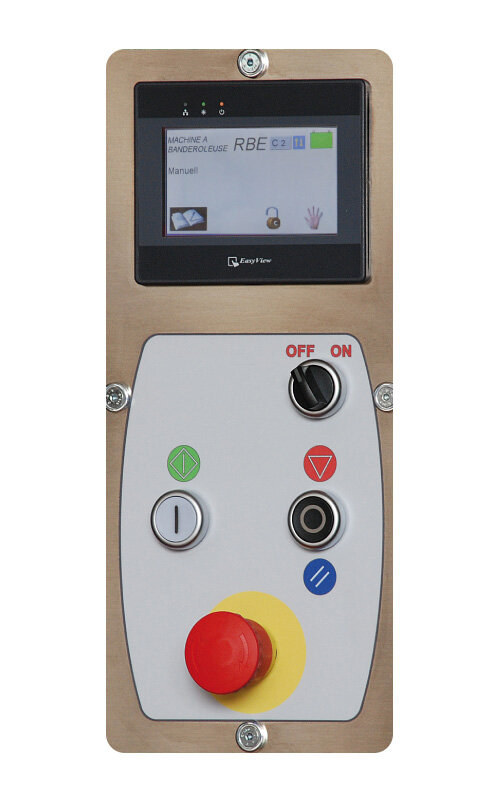

Parameter Adjustment from Touch Screen

• Number of wraps on bottom of pallet

• Number of wraps on top of pallet

• Robot rotation speed

• Upward and downward carriage speed

• Photocell delay for pallet overlapping

• Perimeter of product to be wrapped

Available Functions

• Partial wrapping up or down

• Full wrapping up and down

• Wrapping start from a preset height

• Reinforcing wrap in pre-set position

• Pallet height setting for photocell exclusion

• Wrapping with top sheet protection

• Diagnostic

• Monitoring the state of charge of battery on the touch screen

• Manual functions

• Capacity to store many custom programs

• Password setting to protect parameters

Easy
Feeler arm unit with a very simple and fast height adjustment

Handy
For an easier and faster maintenance

Safe
Emergency system bumper system for Emergency stop in case of obstacle within a radius of action of the robot

Carriage
With either mechanical brake or power stretch

Battery Charger

• Hight frequency system with advance tecnology: -Efficiency > 85 %

• Charging process fully controllod by microprocessor

• Automatic reset upon connection of a new battery

• Protection with an output relay against polarity inversions, short circuits, over-voltages or anomalies

• LED flashing to signal possible anomalies

Machine Specifications

• Width 600 mm

• Length 1630 mm

• Total height 2190 mm

• Weight 300 Kg

• Power supply (battery charge) 110/240 Volt 50/60 Hz

• Battery for electric traction AGM 2 x 12 Vdc

• Hermetic battery without maintenance

• Machine speed Km/hr 1,8 ÷ 4,4

• Battery autonomy 120/160 pallets

Film Technical Specifications

• Stretchable film 15 – 35 um

• Internal reel-holding tube 76 mm

• Maximum external reel 300 mm

• Reel height 500 mm

• Maximum reel weight 16 – 20 Kg

Main Options

• Flashing lamp

• Feeler arm unit with double wheel

• Mast for pallet of 2400 mm height
